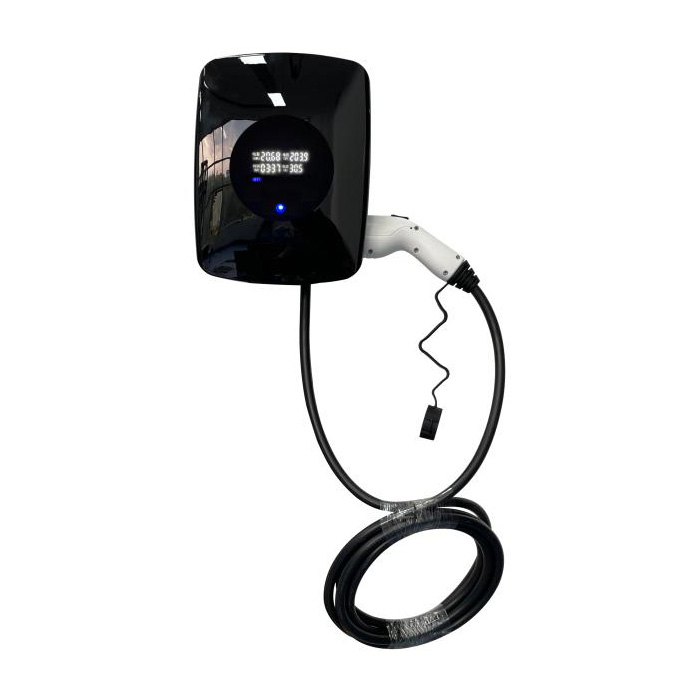

7.4KW AC EV Charger Black Box

SUNERAS® 7.4KW AC EV Charger Black Box have a good price advantage and cover most of the countries markets. We look forward to becoming your long-term partner in China.

SUNERAS® 7.4 KW AC EV charger delivers all the safety and smart charging features you need to make home charging easy, reliable and cost-effective. It is designed to provide a premium charging experience that can be upgraded as technology changes, while providing freedom of choice, which is a compact, high power, fully ruggedized, WiFi-equipped EVSE. Also affordable priced and fully customizable, including color, colorful charging cable, is acceptable.

Product highlights:

1.7.4KW AC EV Charger Black Box can be backward compatible with 3.7kW/1φ.

2.Modular installation to reduce the difficulty of on-site construction. 3.RCD:Type B leakage protection .

4.Temperature detection and protection of power socket.

5.Network by 4G / LAN (support customization).

6.Local configuration via app(IOS or Andriod)

7. The charger supports wall mount and column installation.

8. 7.4KW AC EV Charger Black Box supports fast installation or replacement in ten minutes.

Service environment

I. Operation temperature: -30⁰C...+75⁰C II. RH: 5%...95%

III. Attitude: <2000m

IV. Installation environment: concrete foundation without strong magnetic interference. An Awning is recommended.

V. Peripheral space: >0.1m

7.4KW AC EV Charger Black Box
Power inputInput ratingAC230V 1ph Wye 32A max.
Number of phase / wire1ph / L1, N, PE
Power outputOutput power7.4kW max(1gun)
Output rating230V AC
ProtectionProtectionOver current Under voltage Over voltage Residual current Surge protection Short circuit, Over temperature Ground fault
User interfaceDisplayLEDs,（Support customization ）
Support languageEnglish (Other languages available upon request)
EnvironmentalOperating temperature-30 ℃to+75℃ (derating when over 55℃)
Storage temperature-40 ℃to+75℃
Humidity< 95% relative humidity, non-condensing
AltitudeUp to 2000 m (6000 feet)
MechanicalIngress protectionIP65
CoolingNatural cooling
Charging cable length6.5m,（Support customization ）
Dimension (W*D*H) mm225*145*290mm
